MICRO

MICRO: Curves and Full Circles

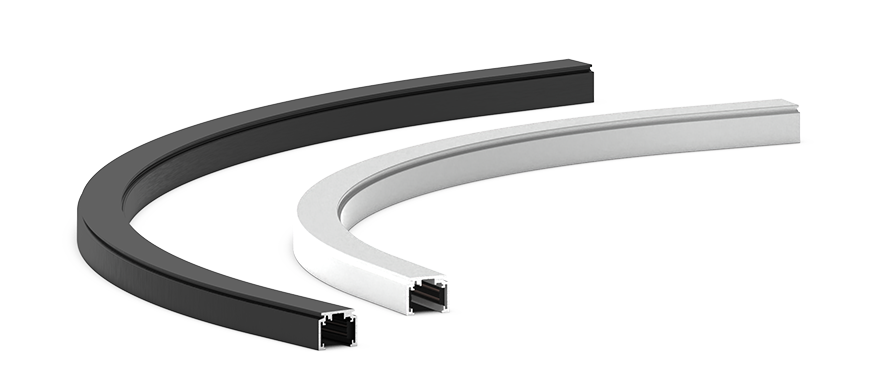

The ST1, ST15 and ST16 MICRO tracks can be curved in a custom version starting from a minimum radius. The ST1 track is available as a standard product with radii of 300 mm and 500 mm. Curved tracks can be powered and connected to create continuous curves; spotlights can be used thanks to the 9609... articulated adapter.

Standard Radius

The MICRO track in ST1 version is available as a standard item with radii of 300/500 mm in the horizontal version (9O) and 300 mm in the vertical version (9V).

Code	Track radius	Max load	Color
9600-R03-90/B-ST1	300 mm	9 Kg (vedi istruzioni di montaggio)	Black
9600-R03-90/B-ST1 Standard Radius View product ELECTRIFIED 4-CONDUCTOR TRACK FOR CEILING/WALL MOUNTING
9600-R03-90/W2-ST1	300 mm	9 Kg (vedi istruzioni di montaggio)	White
9600-R03-90/W2-ST1 Standard Radius View product ELECTRIFIED 4-CONDUCTOR TRACK FOR CEILING/WALL MOUNTING
9600-R03-90/J-ST1	300 mm	9 Kg (vedi istruzioni di montaggio)	Black and White
9600-R03-90/J-ST1 Standard Radius View product ELECTRIFIED 4-CONDUCTOR TRACK FOR CEILING/WALL MOUNTING
9600-R05-90/B-ST1	500 mm	9 Kg (vedi istruzioni di montaggio)	Black
9600-R05-90/B-ST1 Standard Radius View product ELECTRIFIED 4-CONDUCTOR TRACK FOR CEILING/WALL MOUNTING
9600-R05-90/W2-ST1	500 mm	9 Kg (vedi istruzioni di montaggio)	White
9600-R05-90/W2-ST1 Standard Radius View product ELECTRIFIED 4-CONDUCTOR TRACK FOR CEILING/WALL MOUNTING
9600-R05-90/J-ST1	500 mm	9 Kg (vedi istruzioni di montaggio)	Black and White
9600-R05-90/J-ST1 Standard Radius View product ELECTRIFIED 4-CONDUCTOR TRACK FOR CEILING/WALL MOUNTING
9600-R03-9V/B-ST1	300 mm	N/d	Black
9600-R03-9V/B-ST1 Standard Radius View product ELECTRIFIED 4-CONDUCTOR TRACK FOR CEILING/WALL MOUNTING
9600-R03-9V/W2-ST1	300 mm	N/d	White
9600-R03-9V/W2-ST1 Standard Radius View product ELECTRIFIED 4-CONDUCTOR TRACK FOR CEILING/WALL MOUNTING
9600-R03-9V/J-ST1	300 mm	N/d	Black and White
9600-R03-9V/J-ST1 Standard Radius View product ELECTRIFIED 4-CONDUCTOR TRACK FOR CEILING/WALL MOUNTING

Custom Radius

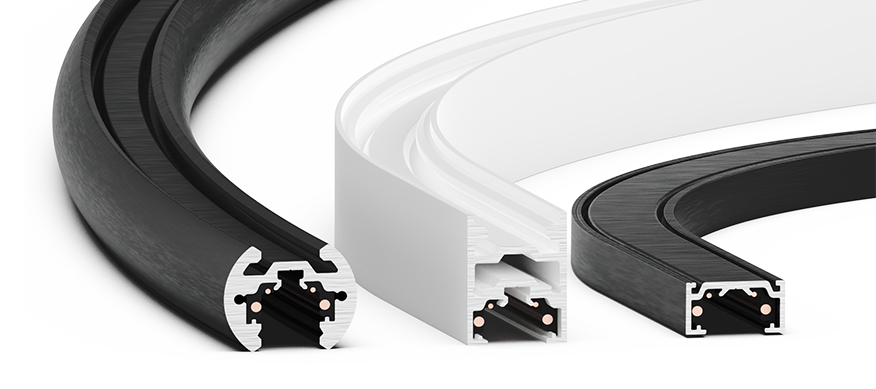

The MICRO tracks in versions ST1, ST15, and ST16 can be curved with different minimum radii.

Code	Track radius	Max load	Color

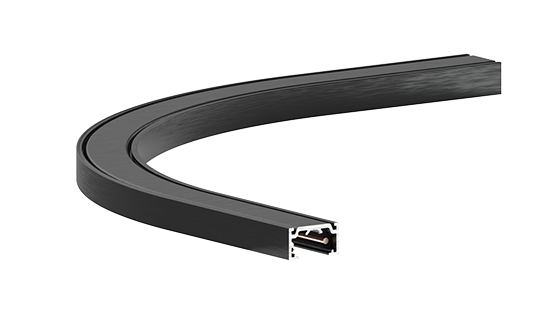

9600-R...-../B-ST1	≥ 150 mm	9 Kg/m (vedi istruzioni di montaggio)	Black
9600-R...-../B-ST1 Custom Radius View product ELECTRIFIED 4-CONDUCTOR TRACK FOR CEILING/WALL MOUNTING

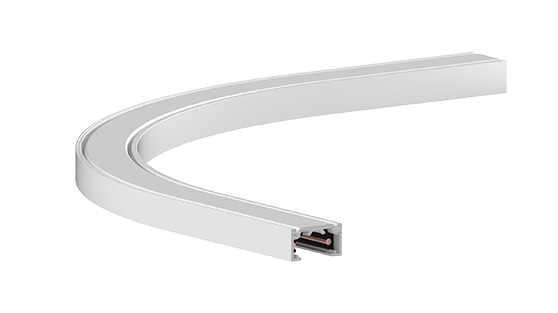

9600-R...-../W2-ST1	≥ 150 mm	9 Kg/m (vedi istruzioni di montaggio)	White
9600-R...-../W2-ST1 Custom Radius View product ELECTRIFIED 4-CONDUCTOR TRACK FOR CEILING/WALL MOUNTING

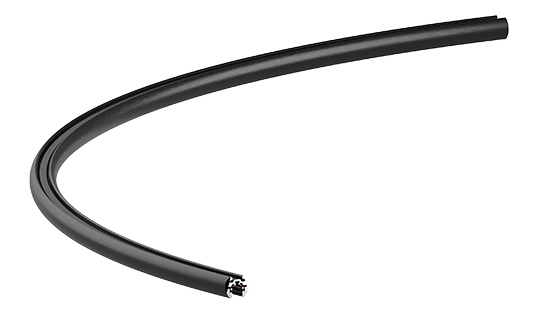

9600-R...-../B-ST15	≥ 1000 mm	5 Kg/m (vedi istruzioni di montaggio)	Black
9600-R...-../B-ST15 Custom Radius View product CURVED ELECTRIFIED 4-CONDUCTOR TRACK FOR SUSPENSION MOUNTING

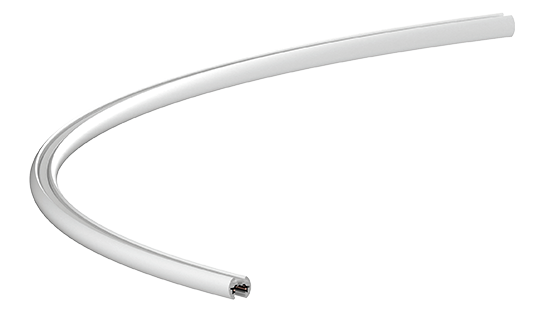

9600-R...-../W2-ST15	≥ 1000 mm	5 Kg/m (vedi istruzioni di montaggio)	White
9600-R...-../W2-ST15 Custom Radius View product CURVED ELECTRIFIED 4-CONDUCTOR TRACK FOR SUSPENSION MOUNTING

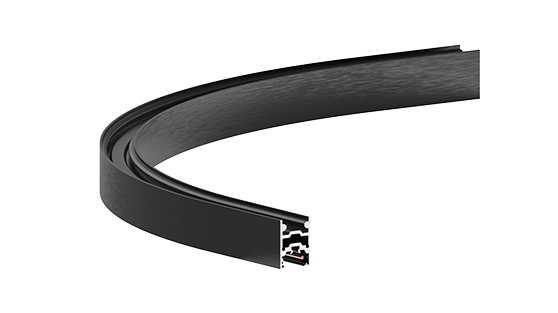

9600-R...-../B-ST16	≥ 300 mm	4.5 Kg/m (vedi istruzioni di montaggio)	Black
9600-R...-../B-ST16 Custom Radius View product CURVED ELECTRIFIED 4-CONDUCTOR TRACK FOR SUSPENSION MOUNTING

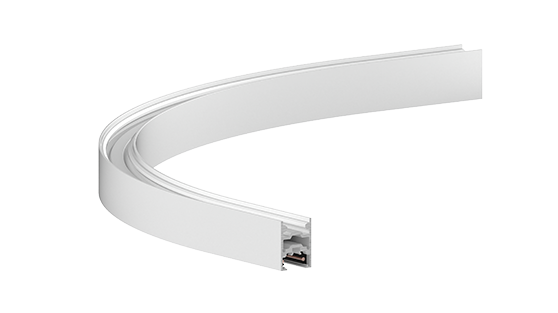

9600-R...-../W2-ST16	≥ 300 mm	4.5 Kg/m (vedi istruzioni di montaggio)	White
9600-R...-../W2-ST16 Custom Radius View product CURVED ELECTRIFIED 4-CONDUCTOR TRACK FOR SUSPENSION MOUNTING

Adapters

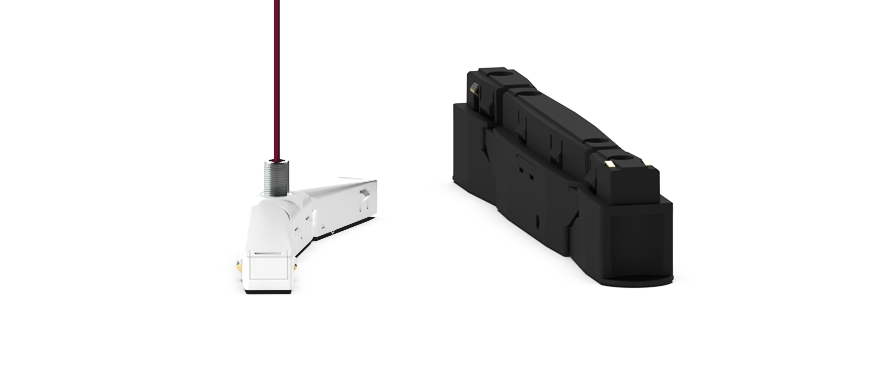

On curved tracks, it is possible to use spotlights thanks to the articulated adapters 9609...

Code	Track radius	Max load	Color
9609/B	≥ 300 mm	10 N	Black
9609/B Adapters View product ARTICULATED MECHANICAL ADAPTER FOR SINGLE PROJECTOR, TO BE USED IN HORIZONTAL CURVED TRACK OR LINEAR TRACK
9609/W	≥ 300 mm	10 N	White
9609/W Adapters View product ARTICULATED MECHANICAL ADAPTER FOR SINGLE PROJECTOR, TO BE USED IN HORIZONTAL CURVED TRACK OR LINEAR TRACK
9609C/B	≥ 300 mm	N/d	Black
9609C/B Adapters View product ARTICULATED CROSSOVER ADAPTER, FOR SINGLE PROJECTOR, WITH EVO LED DRIVER HOUSING
9609C/W	≥ 300 mm	N/d	White
9609C/W Adapters View product ARTICULATED CROSSOVER ADAPTER, FOR SINGLE PROJECTOR, WITH EVO LED DRIVER HOUSING
