ONETRACK: Curves and Full Circles

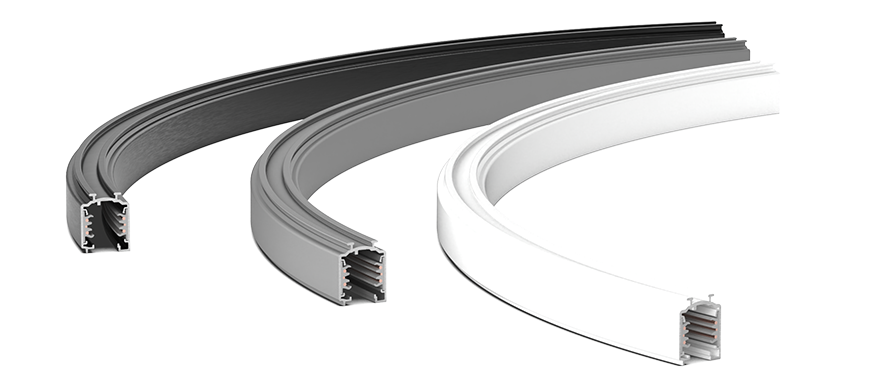

The ONETRACK ADVANCE track can be curved in a custom version starting from a minimum radius. Curved tracks can be powered and connected using standard end feeds and joints, allowing the creation of continuous curves and the installation of projectors with different standard adapters depending on the radius used.
Custom Radius
The ONETRACK ADVANCE track can be bent with a minimum radius of 600 mm.
| Code | Track Radius | Max load | Color |
|---|---|---|---|
|

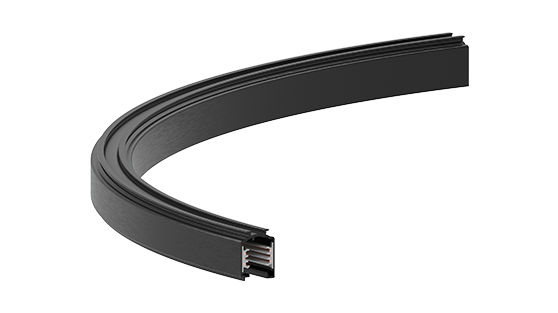

9000A-R...-../B-ST
|
≥ 600 mm | 25 Kg/m (vedi istruzioni di montaggio) | Black |
|
|
|||
|

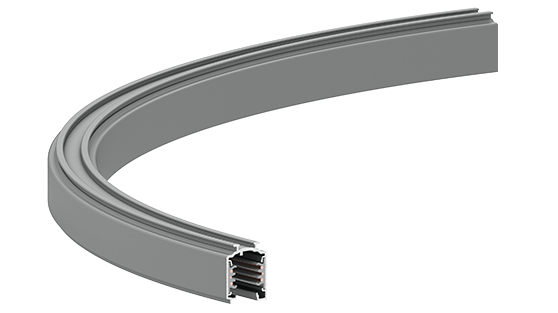

9000A-R...-../G-ST
|
≥ 600 mm | 25 Kg/m (vedi istruzioni di montaggio) | Grey |
|
|
|||
|

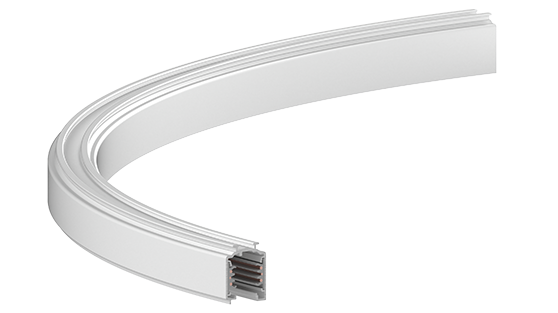

9000A-R...-../W-ST
|
≥ 600 mm | 25 Kg/m (vedi istruzioni di montaggio) | White |
|
|
|||

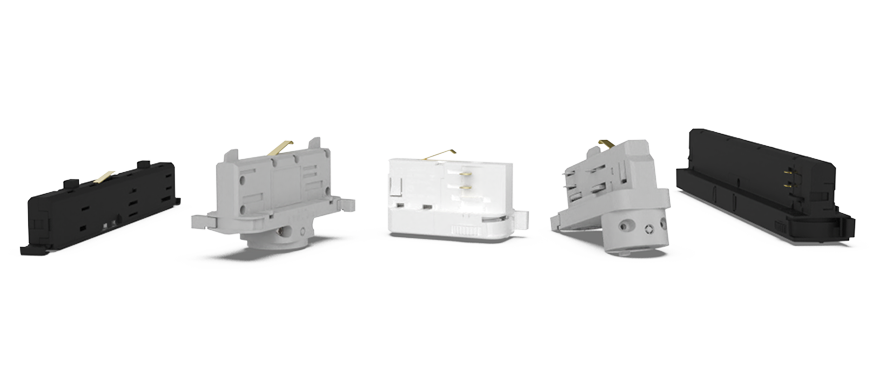

Adapters
Spotlights can be installed on curved tracks with ONETRACK adapters, while ensuring the required minimum radius
| Code | Track Radius | Max load | Color |
|---|---|---|---|
|
9009/B
|
≥ 700 mm | 100 N | Black |
|
9009/B
Adapters
SYMMETRICAL ADAPTER WITH DOUBLE MANUAL LOCKING LEVER, 6 CONDUCTORS (3 PHASES + N + CONTROL SYSTEM), WITH PHASE SELECTOR
|
|||
|
9009/G
|
≥ 700 mm | 100 N | Grey |
|
9009/G
Adapters
SYMMETRICAL ADAPTER WITH DOUBLE MANUAL LOCKING LEVER, 6 CONDUCTORS (3 PHASES + N + CONTROL SYSTEM), WITH PHASE SELECTOR
|
|||
|
9009/W
|
≥ 700 mm | 100 N | White |
|
9009/W
Adapters
SYMMETRICAL ADAPTER WITH DOUBLE MANUAL LOCKING LEVER, 6 CONDUCTORS (3 PHASES + N + CONTROL SYSTEM), WITH PHASE SELECTOR
|
|||
|
9209/B
|
≥ 700 mm | 100 N | Black |
|
9209/B
Adapters
ASYMMETRICAL ADAPTER WITH SINGLE MANUAL LOCKING LEVER, 6 CONDUCTORS (3 PHASES + N + CONTROL SYSTEM), WITH PHASE SELECTOR
|
|||
|
9209/G
|
≥ 700 mm | 100 N | Grey |
|
9209/G
Adapters
ASYMMETRICAL ADAPTER WITH SINGLE MANUAL LOCKING LEVER, 6 CONDUCTORS (3 PHASES + N + CONTROL SYSTEM), WITH PHASE SELECTOR
|
|||
|
9209/W
|
≥ 700 mm | 100 N | White |
|
9209/W
Adapters
ASYMMETRICAL ADAPTER WITH SINGLE MANUAL LOCKING LEVER, 6 CONDUCTORS (3 PHASES + N + CONTROL SYSTEM), WITH PHASE SELECTOR
|
|||
|
9409-4/B
|
≥ 600 mm | 50 N | Black |
|
9409-4/B
Adapters
ASYMMETRICAL ADAPTER WITH SINGLE MANUAL LOCKING LEVER, 4 CONDUCTORS (3 PHASES + N), WITH PHASE SELECTOR
|
|||
|
9409-4/G
|
≥ 600 mm | 50 N | Grey |
|
9409-4/G
Adapters
ASYMMETRICAL ADAPTER WITH SINGLE MANUAL LOCKING LEVER, 4 CONDUCTORS (3 PHASES + N), WITH PHASE SELECTOR
|
|||
|
9409-4/W
|
≥ 600 mm | 50 N | White |
|
9409-4/W
Adapters
ASYMMETRICAL ADAPTER WITH SINGLE MANUAL LOCKING LEVER, 4 CONDUCTORS (3 PHASES + N), WITH PHASE SELECTOR
|
|||
|
9409-DRI/B-N
|
≥ 3300 mm | 50 N | Black |
|
9409-DRI/B-N
Adapters
ASYMMETRICAL ADAPTER WITH DOUBLE MANUAL LOCKING LEVER, 6 CONDUCTORS (3 PHASES + N + CONTROL SYSTEM), WITH PHASE SELECTOR, UNBRANDED, WITH INTEGRATED DRIVER
|
|||
|
9409-DRI/G-N
|
≥ 3300 mm | 50 N | Grey |
|
9409-DRI/G-N
Adapters
ASYMMETRICAL ADAPTER WITH DOUBLE MANUAL LOCKING LEVER, 6 CONDUCTORS (3 PHASES + N + CONTROL SYSTEM), WITH PHASE SELECTOR, UNBRANDED, WITH INTEGRATED DRIVER
|
|||
|
9409-DRI/W-N
|
≥ 3300 mm | 50 N | White |
|
9409-DRI/W-N
Adapters
ASYMMETRICAL ADAPTER WITH DOUBLE MANUAL LOCKING LEVER, 6 CONDUCTORS (3 PHASES + N + CONTROL SYSTEM), WITH PHASE SELECTOR, UNBRANDED, WITH INTEGRATED DRIVER
|
|||
|
9999/B
|
≥ 3200 mm | 50 N | Black |
|
9999/B
Adapters
ASYMMETRICAL CONCEALED ADAPTER WITH DOUBLE MANUAL LOCKING LEVER, 6 CONDUCTORS (3 PHASES + N + CONTROL SYSTEM), WITH PHASE SELECTOR
|
|||
|
9999/W
|
≥ 3200 mm | 50 N | White |
|
9999/W
Adapters
ASYMMETRICAL CONCEALED ADAPTER WITH DOUBLE MANUAL LOCKING LEVER, 6 CONDUCTORS (3 PHASES + N + CONTROL SYSTEM), WITH PHASE SELECTOR
|
|||
|
9999-DRI/B
|
≥ 3700 mm | 50 N | Black |
|
9999-DRI/B
Adapters
ASYMMETRICAL CONCEALED ADAPTER WITH DOUBLE MANUAL LOCKING LEVER, 6 CONDUCTORS (3 PHASES + N + CONTROL SYSTEM), WITH PHASE SELECTOR, WITH INTEGRATED DRIVER
|
|||
|
9999-DRI/W
|
≥ 3700 mm | 50 N | White |
|
9999-DRI/W
Adapters
ASYMMETRICAL CONCEALED ADAPTER WITH DOUBLE MANUAL LOCKING LEVER, 6 CONDUCTORS (3 PHASES + N + CONTROL SYSTEM), WITH PHASE SELECTOR, WITH INTEGRATED DRIVER
|
|||
