EVO
EVO: Curves and Full Circles

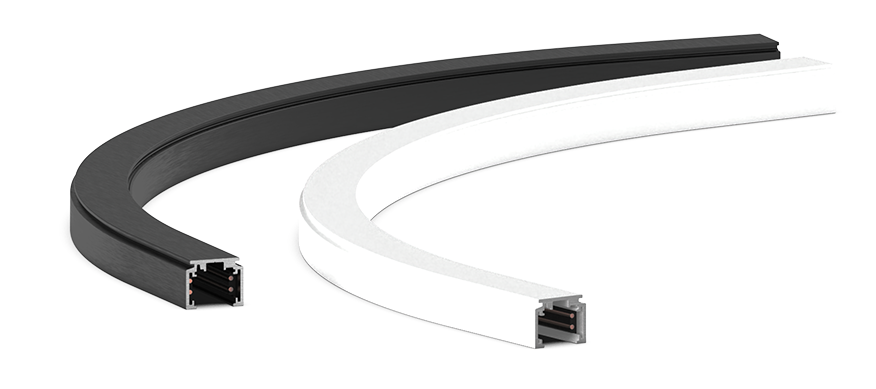

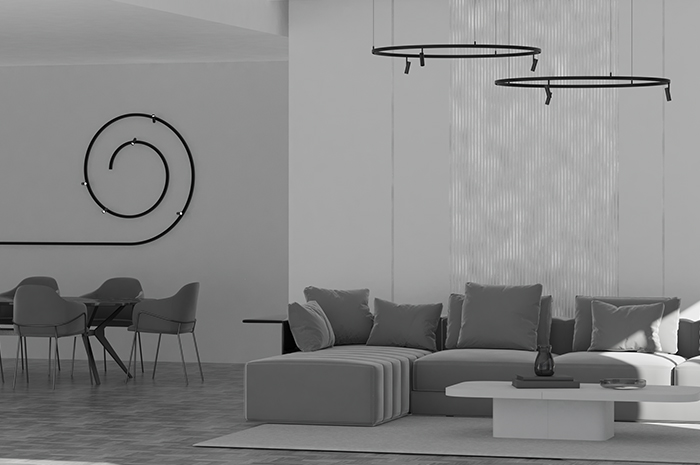

The ST1 EVO track can be custom curved starting from a minimum radius and is available as a standard product with 350 mm and 500 mm radius. Curved tracks can be powered and connected to create complete circles and continuous curves, where spotlights and downlights can be used thanks to the 9509 articulated adapter.
The EVO track in the ST1 version is available as a standard item with a radius of 350/500 mm using an external key (E) and 500 mm using an internal key (I).
| Code | Track Radius | Max load | Color |
|---|---|---|---|
|
9500-R035E-90/B-ST1-E
|
350 mm | 25 Kg/m (vedi istruzioni di montaggio) | Black |
|
9500-R035E-90/B-ST1-E
Standard Radius
CURVED ELECTRIFIED TRACK FOR CEILING/WALL/SUSPENDED MOUNTING WITH EXTERNAL KEY
|
|||
|
9500-R035E-90/W2-ST1-E
|
350 mm | 25 Kg/m (vedi istruzioni di montaggio) | White |
|
9500-R035E-90/W2-ST1-E
Standard Radius
CURVED ELECTRIFIED TRACK FOR CEILING/WALL/SUSPENDED MOUNTING WITH EXTERNAL KEY
|
|||
|

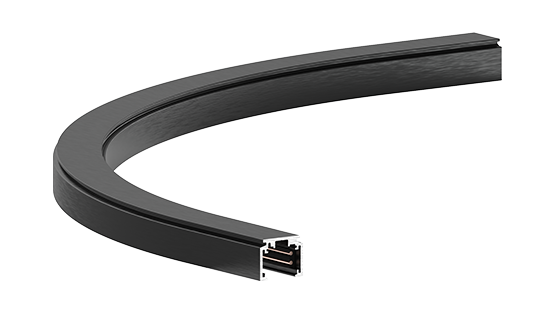

9500-R05E-90/B-ST1-E
|
500 mm | 25 Kg/m (vedi istruzioni di montaggio) | Black |
|
9500-R05E-90/B-ST1-E
Standard Radius
CURVED ELECTRIFIED TRACK FOR CEILING/WALL/SUSPENDED MOUNTING WITH EXTERNAL KEY
|
|||
|
9500-R05E-90/W2-ST1-E
|
500 mm | 25 Kg/m (vedi istruzioni di montaggio) | White |
|
9500-R05E-90/W2-ST1-E
Standard Radius
CURVED ELECTRIFIED TRACK FOR CEILING/WALL/SUSPENDED MOUNTING WITH EXTERNAL KEY
|
|||
|
9500-R05I-90/B-ST1-E
|
500 mm | 25 Kg/m (vedi istruzioni di montaggio) | Black |
|
9500-R05I-90/B-ST1-E
Standard Radius
CURVED ELECTRIFIED TRACK FOR CEILING/WALL/SUSPENDED MOUNTING WITH EXTERNAL KEY
|
|||
|
9500-R05I-90/W2-ST1-E
|
500 mm | 25 Kg/m (vedi istruzioni di montaggio) | White |
|
9500-R05I-90/W2-ST1-E
Standard Radius
CURVED ELECTRIFIED TRACK FOR CEILING/WALL/SUSPENDED MOUNTING WITH EXTERNAL KEY
|
|||
The EVO track in the ST1 version can be bent with a minimum radius of 350 mm using an external key (E) or 450 mm using an internal key (I).
| Code | Track Radius | Max load | Color |
|---|---|---|---|
|
9500-R...E-../B-ST1-E
|
≥ 350 mm | 25 Kg/m (vedi istruzioni di montaggio) | Black |
|
9500-R...E-../B-ST1-E
Custom Radius
CURVED ELECTRIFIED TRACK FOR CEILING/WALL/SUSPENDED MOUNTING WITH EXTERNAL KEY
|
|||
|

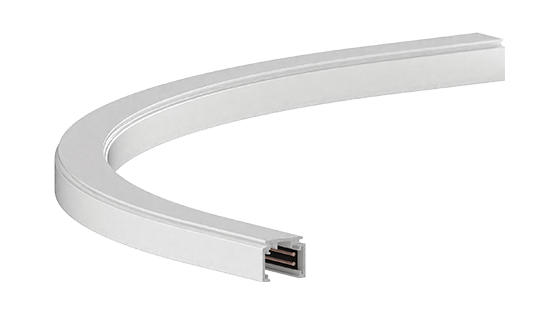

9500-R...E-../W-ST1-E
|
≥ 350 mm | 25 Kg/m (vedi istruzioni di montaggio) | White |
|
9500-R...E-../W-ST1-E
Custom Radius
CURVED ELECTRIFIED TRACK FOR CEILING/WALL/SUSPENDED MOUNTING WITH EXTERNAL KEY
|
|||
|

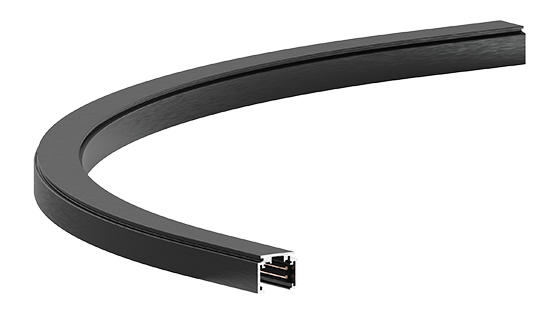

9500-R...I-../B-ST1-E
|
≥ 450 mm | 25 Kg/m (vedi istruzioni di montaggio) | Black |
|
9500-R...I-../B-ST1-E
Custom Radius
CURVED ELECTRIFIED TRACK FOR CEILING/WALL/SUSPENDED MOUNTING WITH INTERNAL KEY
|
|||
|

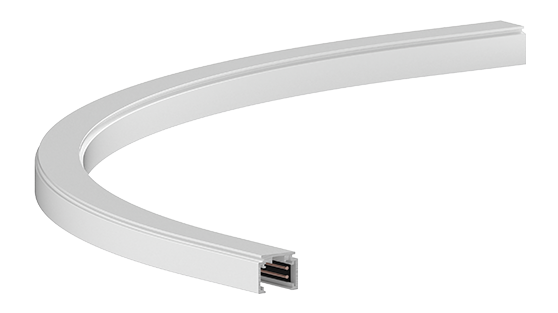

9500-R...I-../W-ST1-E
|
≥ 450 mm | 25 Kg/m (vedi istruzioni di montaggio) | White |
|
9500-R...I-../W-ST1-E
Custom Radius
CURVED ELECTRIFIED TRACK FOR CEILING/WALL/SUSPENDED MOUNTING WITH INTERNAL KEY
|
|||

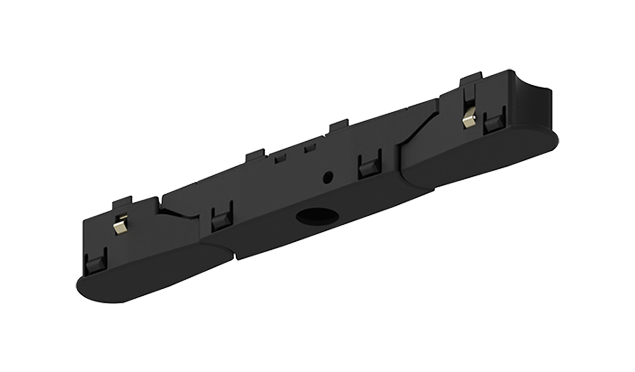

On curved tracks, it is possible to use spotlights thanks to the articulated adapters 9509... .
| Code | Track Radius | Max load | Color |
|---|---|---|---|
|
9509-SN-K/B-E
|
≥ 350 mm | 10 N | Black |
|
9509-SN-K/B-E
Adapters
POLARIZED ARTICULATED ADAPTER FOR SINGLE PROJECTOR WITH HOUSING FOR LED DRIVER
|
|||
|
9509-SN-K/W-E
|
≥ 350 mm | 10 N | White |
|
9509-SN-K/W-E
Adapters
POLARIZED ARTICULATED ADAPTER FOR SINGLE PROJECTOR WITH HOUSING FOR LED DRIVER
|
|||

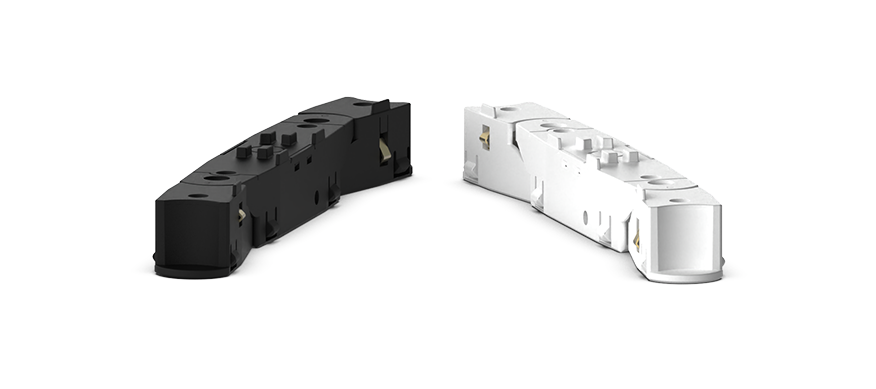

Curved tracks can be powered and continuous curves created with articulated connectors.
| Code | Track Radius | Max load | Color |
|---|---|---|---|
|
9501-SN-K/B-E
|
≥ 350 mm | Black | |
|
|
|||
|
9501-SN-K/W-E
|
≥ 350 mm | White | |
|
|
|||
|
9503-SN-K/B-E
|
≥ 350 mm | Black | |
|
|
|||
|
9503-SN-K/W-E
|
≥ 350 mm | White | |
|
|
|||
