9600-R...-../B-ST1
Curves
ELECTRIFIED 4-CONDUCTOR TRACK FOR CEILING/WALL MOUNTING
Color
Black
Radius
≥ 150 mm
Weight
tbd
Materials
- External extruded body in aluminium
- Insulated extruded body in PVC
- Copper conductors
Max load
9 Kg/m (vedi istruzioni di montaggio)
Voltage
60V
Mounting
- Surface
Rated current and voltage
10A/60V dc1A/60V dc
Color
Length
Render

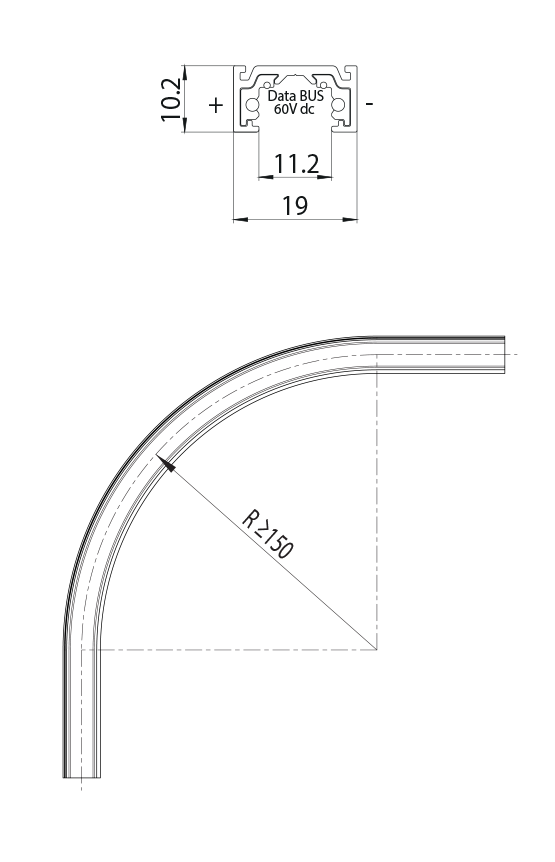

Technical drawing

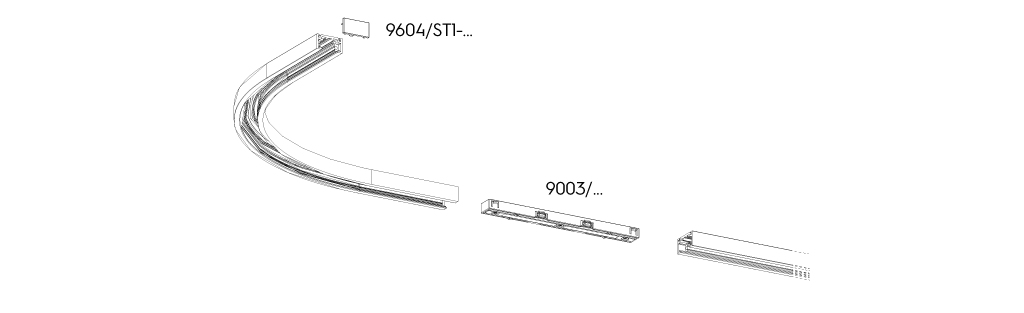

Installation diagram
